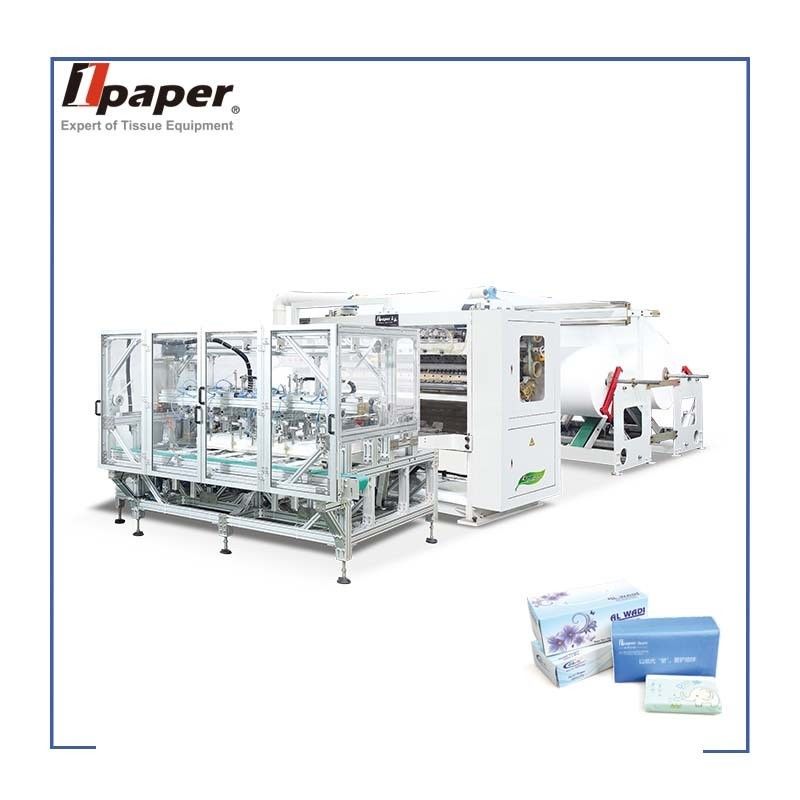

8.87KW Automatic Tissue Paper Making Machine for Manufacturing Virgin Pulp Tissue

Name: 8.87KW Automatic Tissue Paper Making Machine for Manufacturing Virgin Pulp Tissue
Brand: ONEPAPER
SKU: ONEPAPER
Price: 70 USD
Availability: InStock
Rating: 4.6 (142 reviews)

Product Details

Place of Origin: Zhejiang, China

Brand Name: ONEPAPER

Payment & Shipping Terms

Price: $70,000.00/sets 1-1 sets

Packaging Details: wooden box

Supply Ability: 20 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1 Year	Type:	Other
Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Application:	Commodity, Food
Packaging Type:	Bags, Cartons, Case, Film	Packaging Material:	Paper
Automatic Grade:	Automatic	Driven Type:	Pneumatic
Voltage:	380V	Power:	8.87KW
Weight:	2150 KG	Dimension(LWH):	455016501950
Key Selling Points:	High Productivity	Paper Quality Of Carton:	300-400g/m³
Air Supply:	0.5-0.8Mpa	Air Consumption:	160-200L/min
Power Supply Type:	Three Phase Four Wire 380V 50Hz	Packing Speed:	≤120 Boxes/minute
Hot Melt Machine Power:	4KW	Motor Power:	4.87KW
Total Power:	8.87KW	Machine Noise:	≤80dB
Machine Weight:	2150KG	Port:	Ningbo Shanghai

Warranty:	1 Year
Type:	Other
Applicable Industries:	Manufacturing Plant
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New
Application:	Commodity, Food
Packaging Type:	Bags, Cartons, Case, Film
Packaging Material:	Paper
Automatic Grade:	Automatic
Driven Type:	Pneumatic
Voltage:	380V
Power:	8.87KW
Weight:	2150 KG
Dimension(LWH):	455016501950
Key Selling Points:	High Productivity
Paper Quality Of Carton:	300-400g/m³
Air Supply:	0.5-0.8Mpa
Air Consumption:	160-200L/min
Power Supply Type:	Three Phase Four Wire 380V 50Hz
Packing Speed:	≤120 Boxes/minute
Hot Melt Machine Power:	4KW
Motor Power:	4.87KW
Total Power:	8.87KW
Machine Noise:	≤80dB
Machine Weight:	2150KG
Port:	Ningbo Shanghai

Description

8.87KW Automatic Tissue Paper Making Machine for Manufacturing Virgin Pulp Tissue

Product Description

Item/model			OPH-120B
Paper quality of carton			300-400g/m³
maximum packing dimensions			L100-230mm×W80-140mm×H40-100mm
packing speed			≤120 boxes/minute
Hot melt machine power			4KW
motor power			4.87KW
total power			8.87KW
power supply type			3phase 4wire 380V 50Hz
Machine noise			≤80dB
air supply			0.5-0.8 Mpa
air consumption			160-200L/min
Outline dimensions	main machine	L4550×W1650×H1950mm
		conveying mechanism	L4000×W660×H1200mm
machine weight			≈2150Kg

Main performance and structural features:

1. Complete the steps of automatic feeding, box opening, boxing, batch numbering (optional), glue spraying, box sealing, etc., with compact and reasonable structure, simple operation and adjustment;

2. Using 4-axis servo motor and touch screen, PLC programmable control system, the man-machine interface display operation is clearer and simplei; with high automation and more humane;

3. It adopts automatic material sorting and conveying mechanism, which is convenient for linkage production with automatic production line, which can greatly reduce labor costs;

4. The photoelectric eye automatic detection and tracking system is adopted, and the box can not be placed in an empty package, which saves packaging materials to the greatest extent;

5. The packaging range is large, the adjustment is convenient, and the quick conversion between various specifications and sizes can be realized;

6. Changing specifications does not require a large number of mold changes, only adjustment or replacement of individual parts can be achieved;

7. It adopts automatic shutdown and main drive motor overload protection device if the item is not in place, which is safer and more reliable;

8. According to customer requirements, a flip-up safety protective cover can be used, which is easy to operate and beautiful in appearance.

Company Profile

Exhibition

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q: How about the after sales service?
A: We have a strong team for after sales services. We have 1 year warranty for all the machines

Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.

Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.

Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.

Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
